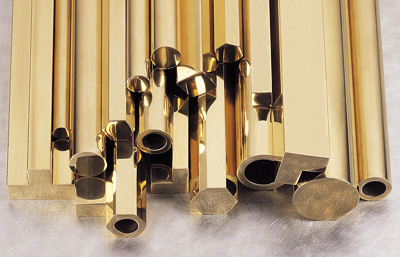

ProductsProductsDezincification Resistance BrassPhotographs of Products |
 |
Manufacturing Purposes |
 |
  |
Description of Product
Superior corrosion resistance, dezincification, forgeability and workability; pro-environmental materialUse of Product
Piping for indoor and open-air construction, cold and hot water and beveragesSize Productible by Product Type
 |
 |
| Round Rod | Ф6 ~ Ф82.55 |
| Hexagonal Rod | Ф7 ~ Ф50.8 |
| Square Rod | Ф7 ~ Ф44.45 |
| Deformed Rod |
Packing Available by Product Dimension
Basic Packing
Outer diameter under Ф12 (OD under Ф8 in case of exportation): 20 to 25 kg;
simple packing with nylon cord + PP band
simple packing with nylon cord + PP band
Outer diameter Ф12 or more (OD Ф8 or more in case of exportation): PP band
Packing weight: 1,000 to 1,500 kg (500 and 1,000 kg, respectively in case of exportation)
Strawboard Packing
Basic packing + plastic packing + paperboard packing
Wood Box Packing
Basic packing + plastic packing + wood box
Chemical Composition and Mechanical Properties
Chemical composition
 |
 |
||||||
| KS/JIS | UNIS | Cu | Pb | Fe | Sn | Zn | Others |
| FD(DR)series | C48600 | 59.0-62.0 | 1.0-2.5 | 0.2 | 0.8-1.5 | Rem. | 0.02-0.25As |
| MD series | C35330 | 59.5-64.0 | 1.5-3.5 | - | - | Rem. | 0.02-0.25As |
| MB series | - | 57.0-63.0 | 0.2 | 0.5 | 0.5 | Rem. | 0.5-3.5Bi |
| CZ series | C89844 | 83.0-86.0 | 0.2 | 0.3 | 3.0-5.0 | 7.0-10.0 | 1.0Ni,2.0-4.0Bi 0.25Sb 0.75Al,0.5-3.5Bi 0.7Al,0.02-0.25As |
| CB series | - | 58.5-63.0 | 0.2 | 0.5 | 0.7 | Rem. | |
| CD series | - | 59.0-64.0 | 0.8-2.5 | 0.2 | 1.5 | Rem. | |
Mechanical Properties
|
 |
 |
 |
 |
 |
 |
|
| KS/JIS | UNIS | ||||||
| - | - | - | - | - | - | - | - |
