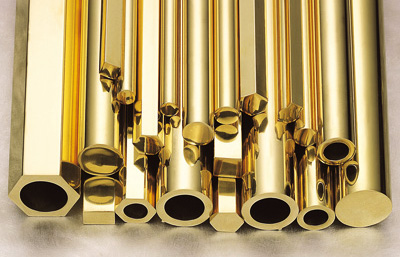

ProductsProductsHigh-Strength Brass RodPhotographs of Products |
 |
Manufacturing Purposes |
 |
  |
Description of Product
High strength; superior hot forgeability, mechanical properties and corrosion resistance; application to car and vesselUse of Product
Synchronizer ring, propeller shaft, pump shaft, etc.Size Productible by Product Type
 |
 |
| Round Rod | Ф6 ~ Ф85 |
| Hollow Rod | Inner diameter Ф14; 5T or more |
| (Round Rod, Hexagonal Rod) | Ф24 * Ф14 ~ Ф76 |
Packing Available by Product Dimension
Basic Packing
Outer diameter under Ф12 (OD under Ф8 in case of exportation): 20 to 25 kg;
simple packing with nylon cord + PP band
simple packing with nylon cord + PP band
Outer diameter Ф12 or more (OD Ф8 or more in case of exportation): PP band
Packing weight: 1,000 to 1,500 kg for brass rod (500 and 1,000 kg, respectively in case of exportation);
500 kg for hollow rod
500 kg for hollow rod
Strawboard Packing
Basic packing + plastic packing + paperboard packing
Wood Box Packing
Basic packing + plastic packing + wood box
Chemical Composition and Mechanical Properties
Chemical composition
 |
 |
||||||
| KS/JIS | UNIS | Cu | Pb | Fe | Sn | Zn | Others |
| - | C67300 | 58.0-63.0 | 0.40-3.0 | 0.5 | 0.3 | Rem. | 0.25Ni,0.25Al, 2-3.5Mn,0.50 -1.5Si 0.20-2.0Al,0.50-2.5Mn 0.20-2.0Al,1.0-3Mn |
| - | C67600 | 57.0-60.0 | 0.50-1.0 | 0.40-1.3 | 0.50-1.5 | Rem. | |
| C6782 | - | 56.0-60.5 | 0.5 | 0.10-1.0 | - | Rem. | |
| C6783 | - | 55.0-59.0 | 0.5 | 0.20-1.5 | - | Rem. | |
Mechanical Properties
|
 |
 |
 |
 |
 |
 |
|
| KS/JIS | UNIS | ||||||
| - | C67300 | ASTMB138 | 1/2H | ~25 25~65 65~ |
500 450 450 |
13 15 17 |
- - - |
| H | ~25 25~38 38~65 65~ |
550 525 510 470 |
8 10 12 16 |
- - - - |
|||
| C6782 | - | KSD5101 | F | 6~50 | 460 | 15 | - |
| C6783 | - | KSD5101 | F | 6~50 | 510 | 12 | - |
